Create RESTful Services and deploy to Oracle Java Cloud Service with Netbeans

In preparation to one of my DOAG 2014 talks „Java WebApps and Services in Oracle Cloud" I created a new trial account for Oracle Java Cloud Service (http://cloud.oracle.com) two weeks ago. Now was the time to create a RESTful Service and deploy it to the cloud and make it accessible to public.

Last time I tried the Oracle Cloud I used exclusively JDeveloper, this time I made my experience with Netbeans. From my point of view Netbeans has pretty good support for generating RESTService from Database tables. In a couple of minutes it is possible to create CRUD Operations and make it accesible by a REST endpoint. No matter what content type you prefer, by using JAXB XML and JSON content types are both automatically available.

Prerequites

Step 1: Create an Oracle Java Cloud Service trial account (fee less for 30 days)

Step 2: Download and install Netbeans Version 8.01 (http://www.netbeans.org)

Step 3: Make sure to install the Oracle Cloud plugin (1.5)  in Netbeans

Step 4: Download and Install (just unpack) Oracle Java Cloud  Service - Saas Extension SDK (release 14.1.12.0 Find it here: http://www.oracle.com/technetwork/middleware/weblogic/downloads/java-cloud-sdk-1848874.html)

Step 5: Next add your Oracle Cloud account as Cloud Provider to Netbeans (Goto „Services" Tab and provide your cloud account details)

Step 6: Add a WebLogic Service Instance under ‚Services Tab', so you are able to test the RESTService locally prior to deploying to Oracle Cloud. (I am not going into detail in this post for that task)

Step 7: Make sure to deploy your DB Schema objects plus data into Oracle Database Cloud Service (when subscribing to Java Cloud Service you will get the DB Service as well). See in my previous posts for more details.

HowTo develop RESTService with Netbeans

Everything is setup for cloud deployment. Now let's create a simple REST-Service on top of the HR  DB Tables EMPLOYEES and DEPARTMENTS.

Step 1: Start Netbeans, Create new Project Wizard from Type „Maven / Web Application"

Step 2: Enter your desired groupId, ArtefactId etc.

Step 3: Choose Oracle WebLogic as ‚Server' and Java EE Version 5.

Click Finish.

Step 3: Start „RESTFul Services from Database" Wizard

Step 4: Make a connection to your local database and select the desired Tables.

Step 5: Review and adapt Package-Settings if desired

Next:

Confirm your input and let Netbeans generate the source code. If you like you can make some adjustments to the generated code. Typically I would change the REST resource path. (in my sample: to „employees")

Step 6: In order beeing deployable to Oracle Cloud we need to make further some adjustments. That

is

Adjustment 1: web.xml

(1) We need to change the servlet class from org.glassfish.jersey.servlet.ServletContainer to com.sun.jersey.spi.container.servlet.ServletContainer because the prior class is not available on the cloud server. (2) Further add an <login-config /> if you want to make the Service publicly (without authentication) available.

Adjustment 2: weblogic.xml

Add a library reference to jax-rs 1.1

Adjustment 3: persistence.xml

Configure your Cloud DB Service name as JNDI Data Source

Deploy RESTService to the cloud

Step 1: Open Project Properties, Choose ‚Oracle Cloud Remote" Server Type, Java EE Version 5

Step 2: Execute ‚Run'

The cloud deployment will start...

The WAR file will be virus scanned...

And Finally deployed to the cloud.

Test the cloud RESTService

Here is my REST Service url for departments https://jcssaasextensitrial9655-deenpitconsultrial83769.java.us2.oraclecloudapps.com/HRRestService/webresources/departments

If using Chrome install the Postman extension to test the Service. e.g. to test different content types. JSON, XML

….

Administer Oracle Java Cloud Service from within Netbeans

Right under the Service Tab your able to Open the Apps, Start, Stop or Undeploy.

To view the Job Status and Logs open the corresponding view from the Oracle Cloud entry.

Troubleshooting

If something goes wrong open the Cloud Job View and Logs Tab to check the details, e.g. if a deployment fails. (1) ClassNotFound Exception

Solution in that particular case is: Use com.sun.jersey.spi.container.servlet.ServletContainer instead of org.glassfish.jersey.servlet.ServletContainer.

(2) java.lang.AbstractMethodError: javax.ws.rs.core.UriBuilder.uri(Ljava/lang/String;)Ljavax/ws/rs/core/UriBuilder

Solution: Somehow the generated POM had a fixed reference to JAX-RS Library which is provided from the cloud server. So I changed that dependency

Conclusion

- Having everything setup (Cloud SDK, local WebLogic Servece, DB Objects in the Cloud Service) it is quite easy to build and deploy RESTful services.

- Why is the SDK not bundled with the Netbeans Oracle Cloud Plugin?
- I wish there would be that kind of wizard (RESTful Services from Database) for JDeveloper ;)

Download Sample: enpit.training.cloud.hrservice-netbeans801.zip

Further Information

- http://www.oracle.com/webfolder/technetwork/tutorials/obe/java/JCS-JAXRS/jcs_jaxrs.html (Tutorial)

- See also: http://www.oracle.com/technetwork/articles/java/enterprise-cloud-2227135.html (Build with NetBeans IDE, Deploy to Oracle Java Cloud Service)

Annotation Driven Bean and EJB DataControls in ADF 12c

So as the trend of using annotations over XML configurations goes on and on in software development there is no exception to  ADF. Many developers asked for more annotations to configure metadata on Bean DataControls. Since ADF 12c finally there is support for annotations on Bean and EJB DataControls. Let's have a look on it.

Sample POJO DataModel

In my sample I am using a simple Data Model that I want to expose as Bean DataControl to check the new annotation features. We use simple POJOs „Person and a PersonService". See next figure

Next we want to see some of the annotation features in action.

Primary Key Definition

In order to make your DataModel functioning correctly in most cases you should define a primary key. You can do this now with the @Id-Annotation: (No need to generate an XML file for these kind of metadata)

(If using JPA-based entity classes make sure to use the javax.persistence.Id annotation)

Setting UI Hints

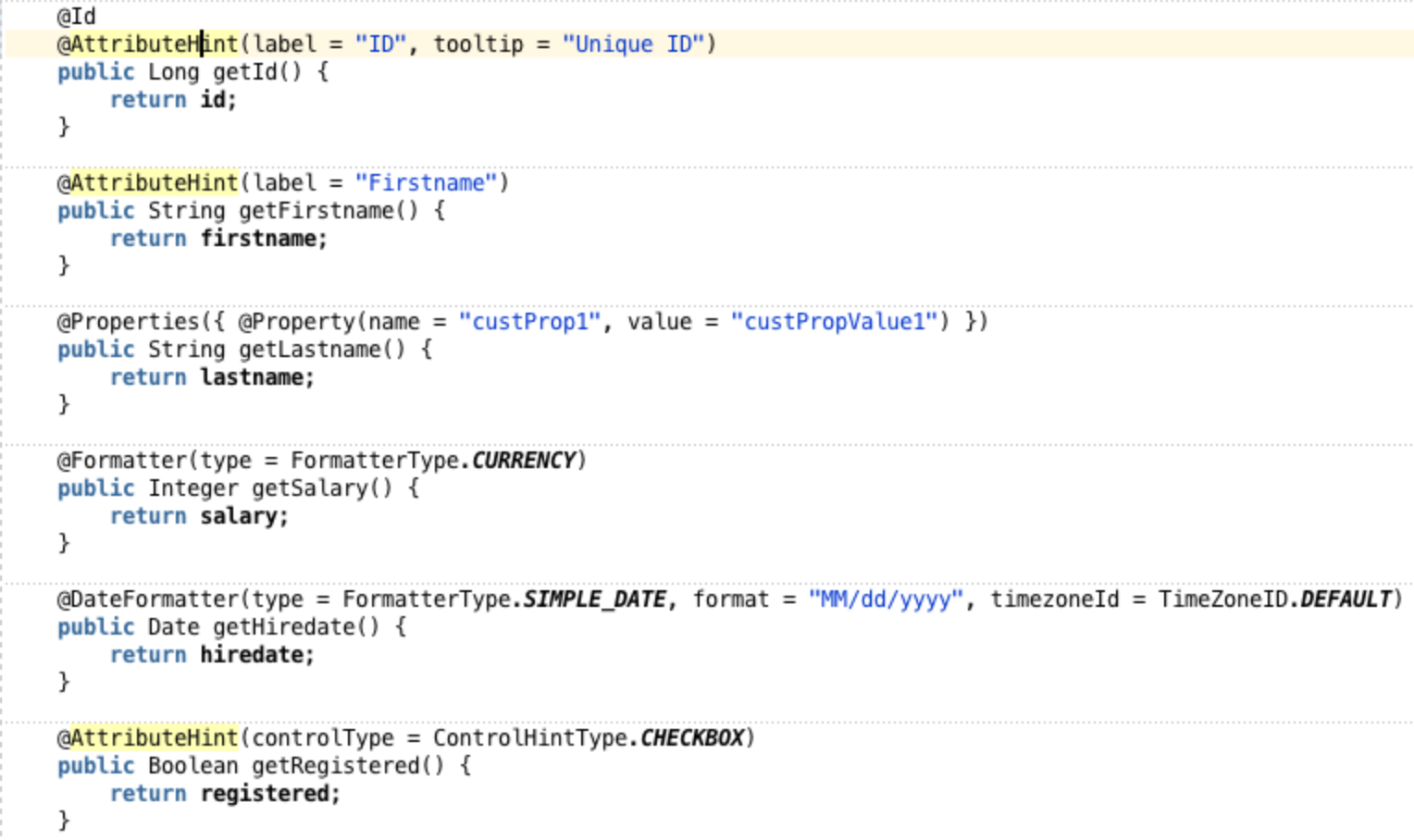

To set specific UI Hints like label, tooltip, display, width, height, autoSubmit, controlType, formatType, format, timezoneId, etc. you can leverage the @AttributeHint, @DateFormatter and @Formatter Annotations. Further it is possible to define custom properties through @Property annotations

See the whole feature list for UI Hints here: http://docs.oracle.com/middleware/1213/adf/develop-data-controls/data-controls-ejb.htm#ADFDC996

Note a: If you set UI hints for an attribute both using annotations and in an XML data control structure file, the settings in the data control structure file take precedence.

Note b: When you apply annotations for UI hints, you can not see the affect of the hints in the design-time view of pages that you create based on the data controls. However, you can test and verify the hints using the ADF Model Tester.

BTW: Everything looks easy so far, but: The most challenging part for me was to recognize that these annotations only work on METHOD level and not on FIELD level although there are no compile errors! It felt natural for me to put these annotations on fields, but believe me, it won't have any effect in ADF 12.1.3. So remember

Interesting to note: The @Id Annotation works also on FIELD level!

Testing the result
Running the sample we see that the annotation driven meta data is recognized correctly. It has been applied to Table Column Headers and Form Labels, Formatters and Input-Types.

Setting AccessMode for Collections

For collections you can define the AccessMode (Scroll, Range-Paging or None).

For SCROLLABLE or RANGE_PAGING Mode to work correctly you need to implement the following method signatures (for every collection)

List<Person> getPersons(int firstResult, int maxResults)

long getPersonsSize()

Note: These annotations only work on getter methods.

Testing Metadata Using the Oracle ADF Model Tester

For EJB and Bean Data Controls you can go to the DataControls.dcx file select the given DataControl and exceute „Run" from the context menu.

=> This is pretty cool. As your deployment roundtrips can be reduced ;)

Gotchas

First everything looks promising. But if you try to do some real world developer roundtrips some gotchas appear. Commenting some annotation out, testing changes etc you notice that some information are not refreshing properly inside JDeveloper. So, e.g.

Step 1: Change primary key definition

Step 2: Open DataControls.dcx

=> The change is recognized correctly by the DataControls Editor.

Step 3: Go to the  structure definition file (Person.xml)

=> The old attribute is still displayed as primary key! Expected: firstname, because of the recent changes. Hhhm. Is this a bug? It could lead to frustration and unexpected behaviour. Workaround is to close the JDeveloper application and open it again. Looks like a caching/synchronization failure.

Conclusion

The support for annotations is getting better in ADF. Besides some caching problems at design time views there is missing support for Validation. As JSR 303 (Bean Validation) is Java industry standard and widely adopted it would be cool to see ADF moving in that direction too! At this time Validations on POJO DataModel must be done in the DataControl structure files per entity. Due to the "sparse bean nature" the XML file only for the given entities needs to be generated.

Download

Sample application build with JDeveloper 12.1.3: enpit.sample.dc.annotations-jdev1213.zip

Further information

• Oracle ADF 12.1.3 Documentation: 4.8 Using Annotations to Declare Metadata for Bean Data Controls
• Oracle ADF 12.1.3 Developing Applications with Oracle ADF Data Controls
• See also my sample for Model-Driven LOVs in ADF 12.1.2

Using FlexSlider as Declarative Component in ADF

In the www there are a lot of cool photo slideshow components which one might want to use in ADF applications too. For example the FlexSlider.

Technically it should be easy to be integrated, e.g. like
..
<flexslider:FlexSlider animation="fade“ id=" fs1="" imagelist="#{someBean.imageList}" />
..

Environment

The following sample is based on ADF 11.1.1.7

How to do it

Well - in theory - it is quite simple. Take a look at the plain JavaScript/HTML Sample from http://www.woothemes.com/flexslider/ and put all necessary files in your component project which will be bundled as ADF Library for reuse. However based on your use cases (integrate inside a fragment based taskflow) there will be some challenges.
- How to deal with more then one instance on one page
- How to hook the javascript, which typically hooks into the onload javascript phase

        $(window).load(function() {
          $('.flexslider').flexslider({
            animation: "fade" /* or "slide" */
          });
        });


So here is my solution.
Step 1: Setup an ADF component project und copy all relevant files from the FlexSlider

Step 2: Next create the declarative component FlexSlider.jspx (by using the JDeveloper wizard, generate the component class and TagLibrary). The important part is to generate a unique id for the slider DIV and to make sure to call the needed javascript method to setup the slideshow. The FlexSlider.jspx looks as follows

and for the FlexSlider.java define the following methods

To make the Javascript call we use a known trick to bind the Call to a getter on an af:outputText with visible=„false“.

How to use it

Define a simple bean (or could also be a DataControl) that serves a List of Images

Drop the declarative component „FlexSlider“ from the component palette onto the given page and bind the given list via EL

As result you will get a reusable UI component to integrate slideshows into ADF applications.

Gotchas

The font resources like ttf, eot, woff, svg (that are referenced from the flexslider.css and are being used as the previous/next font-icons) are not served as expected from the ADF Library which holds the custom component. For now the workaround is to copy these resource into your master viewcontroller project. This way you make sure that all resources are loaded.

See ADF EMG Issue https://java.net/jira/browse/ADFEMG-244 for the current progress.

Download

enpit.sample.flexslider-jdev11117.zip

ADF Mobile rebrands to Oracle MAF (Mobile Application Framework) - New Name, New Features, Growing Community!

Shortly after the release of ADF 12.1.3 the cross-platform mobile development framework ADF Mobile was rebranded to Oracle MAF (Mobile Application Framework). Nothing has changed on the technical foundation of that mobile framework. It is still based on Apache Cordova, HTML5/CSS3, Java, and offers the possibility to develop offline-capable apps with the help of an embedded SQLite database. The developed hybrid apps run on iOS and Android-based smartphones and tablets.

Oracle MAF Overview

The migration of ADF Mobile Apps to Oracle MAF runs smoothly. The migration is totaly transparent when opening the existing app in JDeveloper 12.1.3/Oracle MAF 2.0 Extension.  Excellent!

A highlight of Oracle MAF is that Apache Cordova plugins (eg barcode scanner plugins) can be integrated. The included sample apps have a showcase for reading barcodes. This is very handy! The integrated barcode scanner gives rise to many new and interesting fields of action. Hope to blog about that in more detail in near future. Stay tuned!

Oracle MAF 2.0 -  Barcode Scanner Integration included

I won't list all the new features here, since it is well announced by Shay Shmeltzer here (Say hello to the new Oracle MAF) and here (Oracle MAF hits the street).

Besides the "rebranding" many new "channels" were launched, such as a forum for technical issues, a community at G+, Twitter and Facebook. I have checked all that and summarized the most important links. A lot of activity is going on! Enjoy Exploring;)

Oracle Mobile Application Framework (MAF)

• Oracle MAF Announcement
• Oracle MAF Produktseite
• Oracle MAF Overview Video
• Oracle MAF Data Sheet
• Oracle MAF Samples
• Oracle MAF Design: One Solution for Multiple Platforms
• Oracle MAF Documentation Library (2.0.0.0.0)
• Oralce MAF Pricelist

Oracle Mobile Community and Forum

• Oracle MAF Forum
• Oracle MAF G+ Community
• Oracle MAF G+ Page
• Oracle MAF on Facebook
• Oracle MAF on Twitter
• Oracle Mobile Platform YouTube Channel

What others write

• Oracle MAF bei heise.de
• DOAG.news: Oracle ADF Mobile heißt jetzt Oracle MAF
• Oracle Accelerates Development and Extensibility of Mobile Applications With Oracle Mobile Application Framework

How to use the Deck component (ADF 12.1.3 New Feature)

With the arrival of ADF 12.1.3 many new features has been introduced. One of those features is the brand new deck ui component. In this blogpost I want to give an example on how to use that new component.

Use Case

The use case is quite simple. Arrange pictures of soccer players in a grid. Once clicked on a picture it is flipped. On the backside you can see more details for the given player. Clicking once again on the card it flips back and shows the picture again. Let's look at the result:

Now clicking on the first pic it flips (with an animated transition) and show details.

How to implement

To implement the described use case create a panelGridLayout first with the following properties

• row: Fixed height
• cell: Fixed width, halign="stretch" and valign="stretch"

Inside each cell place the new af:deck component with two links as child components and two transition operations.

The commandLinks act as clickable cards on the deck. Each transition operation defines the desired animation when transitioning from one card to another. There are a lot of out-of-the-box transitions available as you can see in the screenshot.

Which card is currently displayed on the deck is controlled by the displayedChild attribute. It expects the component id of the given child ui component (in this case the af:commandLinks). The interesting piece of JSF Code for the sample to work is as follows:

To make the sample complete a backing bean is needed to handle the action events on each command link. Main task of the action listeners is to change the displayedChild attribut on the deck component and repaint it on the client (through a partial refresh)

Download

Download the sample application - built with JDeveloper 12.1.3: enpit.sample.adf1213.deck-jdev1213.zip

Observations

While implementing the deck sample I did not want to use the deprecated af:commandLink. But converting it to af:link implies a JSF compilation error. So I switched back to the deprecated component.

Looks like the new Link Component is not fully compatible. Is this a bug?

Further Information

• See more af:deck demos at the official JDev/ADF Demo http://jdevadf.oracle.com/adf-richclient-demo/faces/visualDesigns/deck.jspx, http://jdevadf.oracle.com/adf-richclient-demo/faces/components/deck.jspx
• See af:deck documentation in the ADF 12.1.3 Web Developers Guide http://docs.oracle.com/middleware/1213/adf/develop-faces/adf-faces-layout.htm#ADFUI13833
• See af:deck Tag Library Description: http://docs.oracle.com/middleware/1213/adf/tag-reference-faces/tagdoc/af_deck.html

Create RESTful services on top of ADF Business Components

Introduction

Creating SOAP Services on top of ADF Model is for a long time quite easy and convenient. In JDeveloper: Open an ApplicationModule goto WebService Tab and create a Service Interface by exposing some given ViewObject Instances or custom Service methods. See http://www.oracle.com/technetwork/issue-archive/2012/12-sep/o52adf-1735897.html (Consume Early, Consume Often) for more details and great explanation or take a look in the official Oracle documentation http://docs.oracle.com/cd/E23943_01/web.1111/b31974/bcextservices.htm#CJAJGIEB (11 Integrating Service-Enabled Application Modules)

Options to create RESTful Services on top ob ADF BC Model

Creating a RESTful Service Fassade on top of existing ADF Business Components Model is not that straightforward. From different „announcements" we know that Oracle plans to generate RESTful Services ADF BC SDO (Service Data Object) in the future. But for now we need a custom solution.

Exploring various possibilities I came up with the following

Note that the Service Facade is optional but recommended in terms of „separation of concerns", „service virtualization", „clean code", etc. Watch the youtube ADF Insider Essentials for the detailed explanation of the Service Facade Pattern.

Going from top to bottom in the diagram we have the following options

a) ADF BC -> SDO Service Interface -> WebService  -> SOAP

b) ADF BC -> SDO Service Interface -> Inject EJB in REST-Resource -> REST

c) ADF BC -> Use AM Instance programmatically in REST-Resource ->REST

d) this one is planned for some 12.1.3+ release (and in future will be the default option to expose RESTful Services for a given ADF BC Model).

In this post I am covering case b. I did not find a sample on the web yet. So I give it a try cause it looks like THE pragmatic approach so far.

Howto

For the example I am using JDeveloper 12.1.2 and the corresponding Runtim ADF 12.1.2. In order to understand the next steps I assume you know the basics of ADF and JDeveloper.

1. Create ADF BC SDO SOAP Service for an Application Module:

Open the AM in „Overview", goto "Web Service" Tab. Now open the dialog to create the service interface.

Choose the desired VO-Instances and apply you changes.

JDeveloper should generate some files now. If you take a look in the *ServiceImpl.java Class you will notice that  it is exposed as Stateless Session EJB. This is great!

Because from now on you can use the EJB in a REST-Resource to expose it as RESTful-Service. That's what we are planning to do next.

But before this step test your generated (SOAP-based) service first: Make sure you do not ran into the „StackOverflowException" because the SDO Service will try to traverse the ViewLinks recursively. So the following exception might be the one you will run into.

To fix this, open the corresponding ViewLink and uncheck the property „Generate Property in SDO"

2.  Next: Create a new Project for the RESTful Service

Use the right project template from the NEW-Wizard

Open the NEW-Wizard again and create a RESTful service from new

Deselect the Checkbox in front of GET-Method. We are going to do that later in Sourcecode.

Finish. => This should generate a Java class and configure the project with the Jersey Library.

For the sample to complete the project needs on more adjustment in the project properties.

- One more Library (Context and Dependency Injection CDI)

and a dependency to the Model-Project because the RESTfulWebService project need access to the application module.

Thats all for the project setup.

3. Add some classes, annotations and the methods you want to expose

import javax.ejb.EJB;

import javax.inject.Singleton;

import javax.ws.rs.GET;

import javax.ws.rs.Path;

import javax.ws.rs.PathParam;

import javax.ws.rs.Produces;

import oracle.jbo.service.errors.ServiceException;

@Singleton

@Path("api")

public class HrRESTResource {



    @EJB

    HRAppModuleService serviceBean;



    public HrRESTResource() {

    }



    /**

     * getEmployeesView1: generated method. Do not modify.

     */

    @GET

    @Path("emp/{empId}")

    @Produces(value = { "application/json", "application/xml" })

    public EmpResult getEmployeesView1(@PathParam("empId") Integer employeeId) throws ServiceException {



        EmployeesViewSDO empSDO = serviceBean.getEmployeesView1(employeeId);



        EmpResult result = new EmpResult();

        result.setEmployee(empSDO);



        return result;

    }



    @GET

    @Path("depts")

    @Produces(value = { "application/json", "application/xml" })

    public DeptResult findAllDepartments() throws ServiceException {

        DeptResult result = new DeptResult();

        result.setDepartmentList(serviceBean.findDepartmentsView1(null, null));



        return result;



    }

}

Important note: For what ever reason you need to annotate the REST-Resource with @javax.inject.Singleton. Otherwise the EJB-Injection won't work.

Just reuse the SDO-Entity-classes (eg. EmployeesViewSDO), but wrap them inside a custom „Result"-class which should be annotated with @XmlRootElement (JAX-B Standard).

@XmlRootElement

public class DeptResult {

    public DeptResult() {

        super();

    }



    @XmlElement(name="departments")

    private List<DepartmentsViewSDO> departmentList;

    public void setDepartmentList(List<DepartmentsViewSDO> departmentList) {

        this.departmentList = departmentList;

    }

    public List<DepartmentsViewSDO> getDepartmentList() {

        return departmentList;

    }

}

See attached sample application for the whole source code.

4. Run an see the RESTful service in action

As a result we will get the proper JSON structure

if changing the accept- Header to: application/xml we will get XML-Result.

This is pretty cool. Because we can reuse the generated ADF BC SDO SOAP Service Layer as EJB for the REST Fassade.

Download sample application, based on Version ADF 12.1.2: enpit.sample.adf12.restadfbc-jdev1212.zip

More Information

• (Integrating Service-Enabled Application Module, 11.1.2.4) http://docs.oracle.com/cd/E37975_01/web.111240/e16182/bcextservices.htm#CJAJGIEB
• Consume Early, Consume Often (Oracle Magazin, by Frank Nimphius)
